A Precision and Safety Intervention in Porto Marghera
12” PIPELINE MODIFICATION INTERVENTION
Objective
Inerting the 7km long methane gas transport pipeline to allow subsequent cutting and
removal of BALL VALVE DN 12 ”ASME 600 RF and installation of the new MODULAR

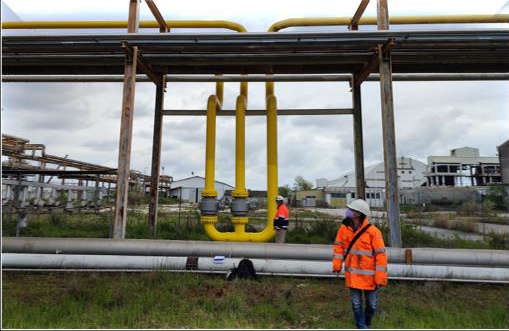

DBB & B TRUNNION BALL VALVE DN 12” ASME 600 RF GEAR (pict. 1).
removal of BALL VALVE DN 12 ”ASME 600 RF and installation of the new MODULAR
DBB & B TRUNNION BALL VALVE DN 12” ASME 600 RF GEAR (pict. 1).
Parameters to be respected: Maximum O2 concentration <5% and CH4 <4%
Customer
Edison SpA – Levante Nitrogen Power Plant, Porto Marghera (VE), Italy
Turnkey work, no interruption of operations and respected planned delivery times
of 10 days.
of 10 days.
Added value for customer
Result
- Line depressurization from 50bar → 20bar (by the Customer) and consequently from 20bar → 0bar (by SIVAM) by means of a thermo-combustor (torch with a visually and acoustically shielded flame) with a flow rate of 80,000 Nm3 / day.

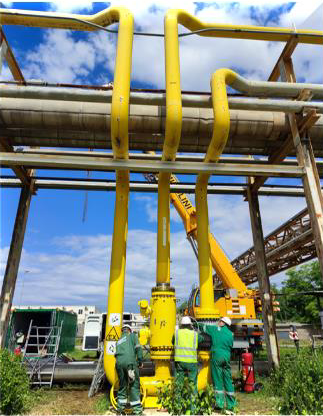

- Using two nitrogen generators at the same time, nitrogen was blown and the line was padded from two different points upstream of the comb object of the intervention (pict. 2 and 3), displacing methane gas in about 3-4 hours and reaching complete inertization in about 8hr.
- At the same time, real-time monitoring is carried out through the sampling section, located downstream of the lines to be stuffed and before the flare, equipped with H2S-O2-CH4-CO2 multigas sensor.
- Coordination of sub-contractors for auxiliary services (cranes and lifters, inspections).
- Subsequent cold cut with chamfer to remove the central valve.
- Flange welding to accommodate new valve, performed with two TIG beads and five electrode closure beads, according to qualifications 141: ISO 636-A and 135: ISO 14341-A.
- NDT inspection with penetrating and magnetoscopic liquids, as well as radiographs of the welds performed.
- Supervision with the customer of the final re- testing of the restored line with pressure test recordings by manorecorder and multigas sampling in the affected areas.
Added value for customer
Turnkey work, no interruption of operations and respected planned delivery times
of 10 days.
of 10 days.
The SIVAM Nitrogen Generator
The SIVAM Nitrogen Generator allows you to perform
inertization interventions without the concrete and frequent risk of running out of Nitrogen with cylinder packs
inertization interventions without the concrete and frequent risk of running out of Nitrogen with cylinder packs
PSA Technology Nitrogen Generator
System designed to generate nitrogen in the gaseous phase directly at the workplace and at the purity required by the user, starting from appropriately dried and filtered compressed air.
Pressure Swing Adsorption (PSA) technology It is able to ensure a production of 106 Nm3 / h of nitrogen in the gaseous phase at a pressure
of 7 bar (G) and a purity of 95%.
The purity of the nitrogen produced can be set on the panel and can even reach 99.999%; the range will obviously vary accordingly, in relation to the degree of purity required.
Pressure Swing Adsorption (PSA) technology It is able to ensure a production of 106 Nm3 / h of nitrogen in the gaseous phase at a pressure
of 7 bar (G) and a purity of 95%.
The purity of the nitrogen produced can be set on the panel and can even reach 99.999%; the range will obviously vary accordingly, in relation to the degree of purity required.
